Full Arch Screw - Multiunit (RP) - 19.069-P10
- Multiunit, Compatible
- SKU:
- 19.069-P10
- Platform Size:
- 4.8
- Platform Name:
- Multiunit RP
- Quantity Per Pack:
- 10
YOU MIGHT ALSO NEED
Latch Style Driver for ANGLEBase® - 20mm Length - DT20TB06
Latch Style Driver for ANGLEBase® - 24mm Length - DT24TB06
Latch Style Driver for ANGLEBase® - 35mm Length - DT35TB06

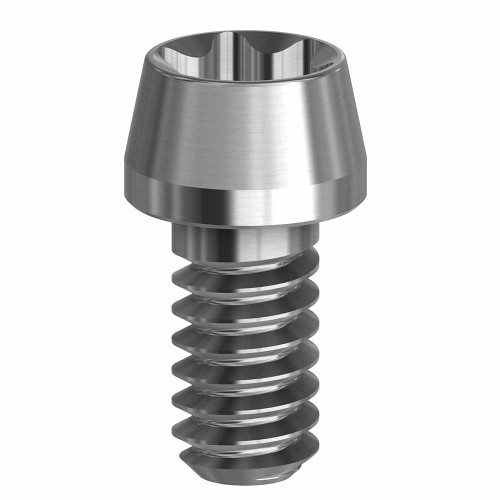

This is an Flat Seat Screw final screw that takes the DESS Angulated Screw Channel driver. Torque is 15Ncm.
It can be used to move the screw access hole up to 25 degrees in any direction. There are 10 screws in the package.
It is compatible with the following top of Multiunit Abutments without any Ti bases:
3i Biomet Certain® Low Profile & 3i Osseotite® External Hex
Astra EV® Multibase
Blue Sky Bio® (BSB)
BioHorizons® Internal Hex & BioHorizons® External Hex
Hahn™
Hiossen® / Osstem
Keystone® Genesis / Prima
Megagen Anyridge® N Type
Neodent GM®
Nobel Active®, Nobel Replace®, & Nobel Brånemark® (NP and RP)
Noris Medical®
DESS® Multiunits
All of our screws are stress tested to 150% of the nominal torque value and can also be used as lab screws.
| REF | DESCRIPTION | HEAD DIAMETER | HEAD BASE ANGLE | OVERALL LENGTH | HEAD LENGTH | DISTANCE FROM HEAD TO THREAD | THERAD LENGTH | THREAD TYPE | RECOMMENDED TORQUE VALUE | SOCKET |
| 19.069 | Screw Torx® 06 on Multi-Unit® RP | 1.9/2.2 | 0° | 4.1 | 1.4 | 0.35 | 2.35 | M1.4 | 15 Ncm | TORX® Ball (Power Ball type) |
